Tavelo Arow SL - Plaid

Arow Super Light - Plaid - XS

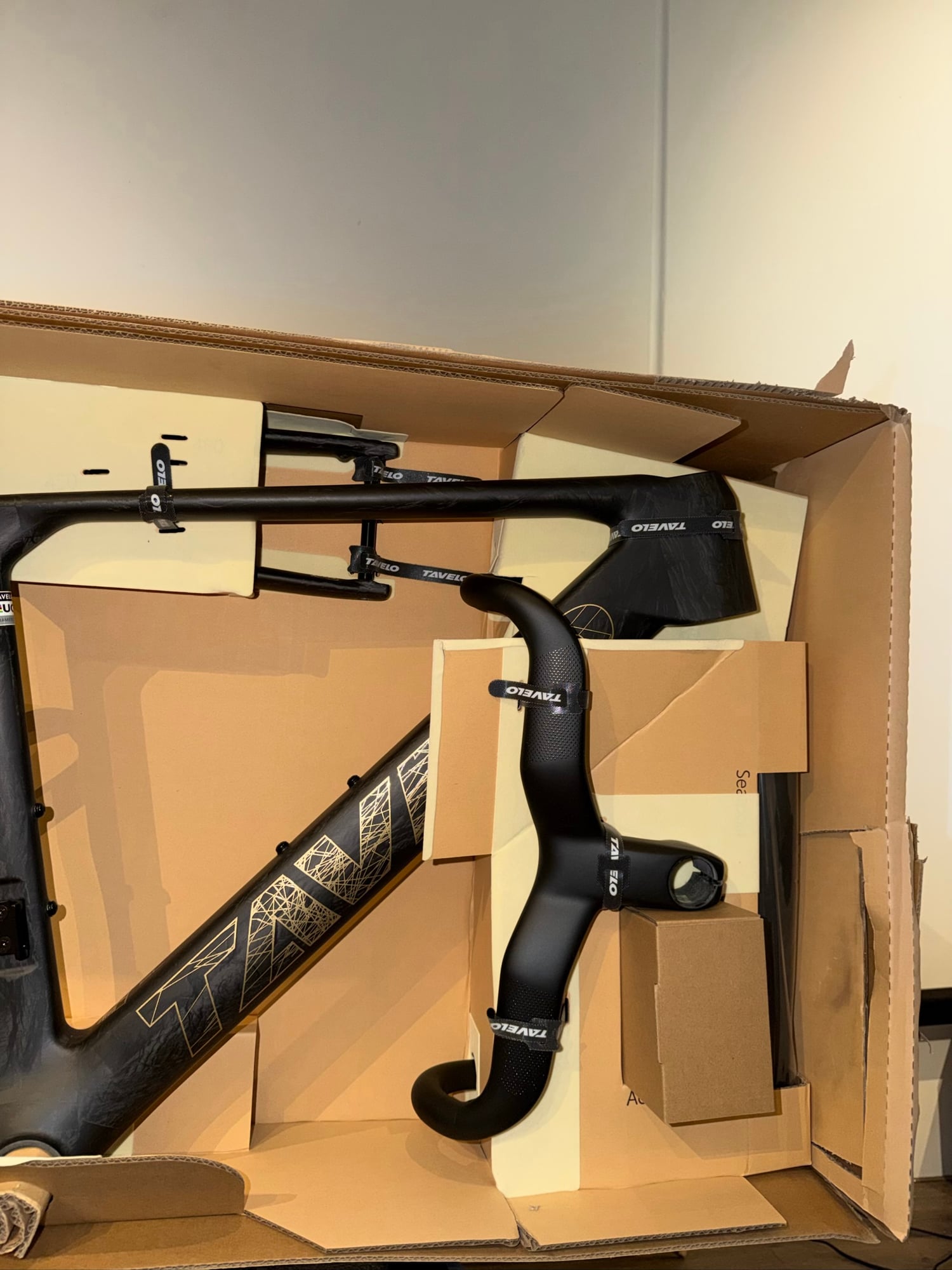

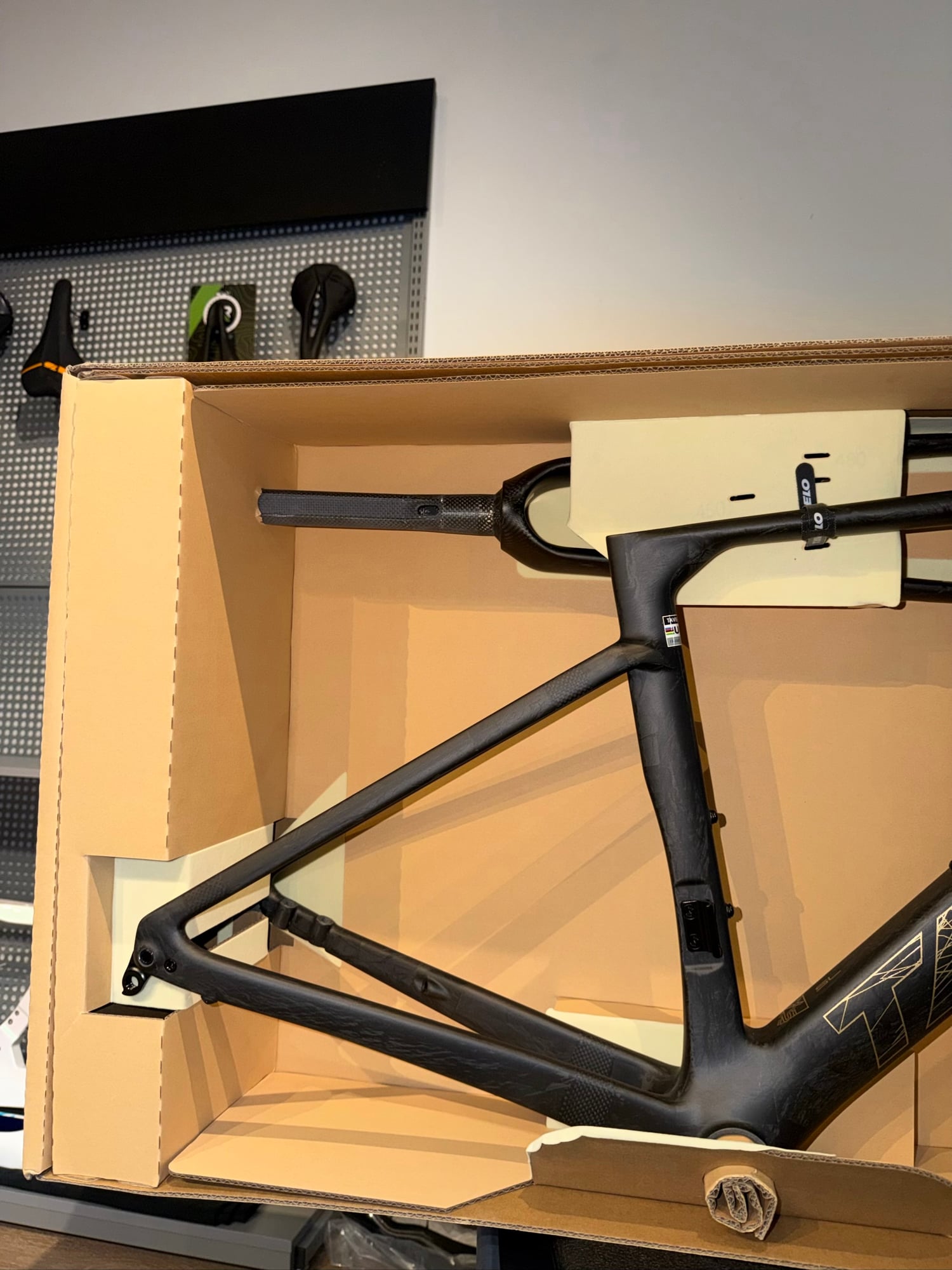

TAVELO AROW RACE SL FRAMESET

Built for pure speed, the Arow Race SL pairs a featherweight Toray T1100 carbon frame with fully concealed cable routing for a clean, aerodynamic silhouette. At just 710 g for the frame (raw finish, size XS), it climbs as well as it cuts through the wind — a true race platform ready to build into your dream machine.

HIGHLIGHTS

Toray T1100 carbon frame — 710 g (raw finish, size XS/420) Toray T800 carbon fork — 355 g (raw finish) Fully integrated, clean cable routing Flat-mount disc brakes, front and rear 12 mm thru-axles (100 mm front / 142 mm rear) Clearance for tires up to 32 mm

Specifications

• Frame: Arow Toray T1100 carbon, clean internal routing, FSA headset (32.8–41.8 mm upper / 34.1–46.9 mm lower), Press-Fit BB86, 12x142 mm thru-axle, flat-mount disc
• Fork: Arow Toray T800 carbon, 12x100 mm thru-axle, flat-mount disc
• Seatpost: Arow Toray T800 carbon, 5 mm setback, 7x7 or 7x9 wedge clamp — 113 g (without saddle clamp)
• Thru-axles: Tavelo AR-1, front and rear
• Max tire clearance: 32 mm
• Claimed weights: Frame 710 g / Fork 355 g / Seatpost 113 g (raw finish, size XS/420)

The Bottom Line

Weights are for raw-finished parts in size XS (420) and may vary slightly by size and paint.
